SIZES : 3” to 6”

SCHEDULE : S10, S20, S30, S40, S STD, S60, S XS, S80, S100, S120, S140, S160, S XXS

STANDARD : API | ASTM | DIN | EN | AS PER CLIENT DRAWING

MATERIAL GRADE : Stainless steel (AISI 304, 316, 321, 347); Alloy steel (AISI Gr.1, Gr.5, Gr.9, Gr.91, Gr.11, Gr.22); Carbon steel (ASTM 105, A516/70, A350 LF2, A694 F60-65)

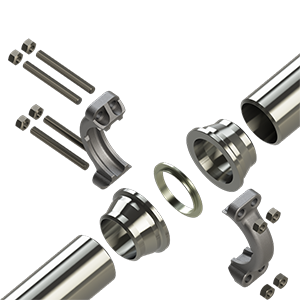

The advantages of clamp connectors compared with bolted flanges are; the small size and low weight, and the ease installation and assembly with only four bolts and a clamp assembly which can be rotated to the most convenient position for bolt pre-loading. In the oil and gas industry, clamp connectors are often used in flowlines and other high pressure systems and where the compact design and small sealing diameter is of greatest advantage.
