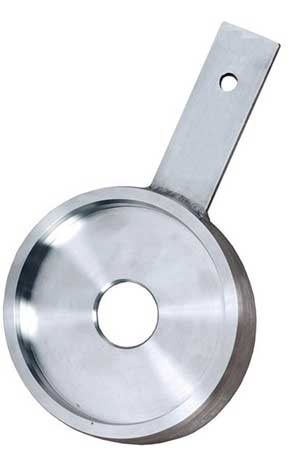

ORIFICE PLATE

SIZES : 3” to 36”

CLASS : 150 to 2500;

CLASS : 150 to 2500; 2500PSI to 15000PSI

STANDARD : API, ASME B16.5, ASME B16.48, API STD, MESC/ SHELL; CLIENT DRAWING

MATERIAL GRADE : Incoloy (800, 800H, 800 HT, 825), Alloy 20; Hastelloy (C22, C276); Cupronickel Cu-Ni; Monel 400; Inconel (600, 625); Titanium (Gr. 1, 2, 3); Urea Grade; Duplex -Super Duplex F51, F53, F55, F44; Stainless steel (AISI 304, 316, 321, 347); Alloy steel (AISI Gr.1, Gr.5, Gr.9, Gr.91, Gr.11, Gr.22); Carbon steel (ASTM 105, A516/70, A350 LF2, A694 F60-65)

ORIFICE FLANGE

FLANGES (FROM SOLID BAR & FORGING)

Sizes : 3” to 36”

CLASS : 150 to 2500;

TYPE : WELDNECK, SOCKET WELD, THREADED

SCHEDULE : S10, S20, S30, S40, S STD, S60, S XS, S80, S100, S120, S140, S160, S XXS

STANDARD : API | ASTM | DIN | EN | AS PER CLIENT DRAWING

MATERIAL GRADE : Incoloy (800, 800H, 800 HT, 825), Alloy 20; Hastelloy (C22, C276); Cupronickel Cu-Ni; Monel 400; Inconel (600, 625); Titanium (Gr. 1, 2, 3); Urea Grade; Duplex -Super Duplex F51, F53, F55, F44; Stainless steel (AISI 304, 316, 321, 347); Alloy steel (AISI Gr.1, Gr.5, Gr.9, Gr.91, Gr.11, Gr.22); Carbon steel (ASTM 105, A516/70, A350 LF2, A694 F60-65)
