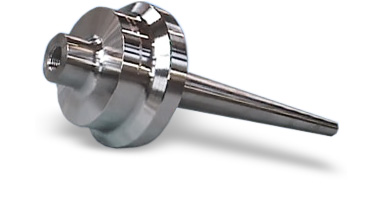

THERMOWELL / INJECTION QUILL

Injection Quill Applications : Inject chemicals such as de-waxing, de-icing or de-foaming agents into the process stream.

Sampling Probes : Allows a small process sample to be removed for evaluation under full system pressure.

Dimensions : The overall quill length, defined in mm from the tip to directly below the flange face and pipe schedule of the quill as per requirement.

Bore Sizes : Determined by the through bore of the DBB valve that has 10mm, 14mm or 20mm as standard

Materials : 316 SS, LF2 Carbon Steel, Duplex, Super Duplex, Hastelloy, 6Mo, Monel, Incoloy 600, Inconel 800.

Quill profiles : The profile of the end of the quill/probe can be manufactured to suit the application.
