SIZES: ½” to 24”
CLASS: 150 to 2500;
TYPE: Weldo Flange, Nipo Flange
SCHEDULE: S10, S20, S30, S40, S STD, S60, S XS, S80, S100, S120, S140, S160, S XXS
STANDARD: ASME B16.5 | MSS-SP 97
MATERIAL GRADES:
- Nickel Alloys: Incoloy (800, 800H, 800HT, 825), Inconel (600, 625), Monel 400
- Specialty Alloys: Alloy 20, Hastelloy (C22, C276), Copper nickel (Cu-Ni), Titanium (Gr. 1, 2, 3), Urea Grade
- Duplex & Super Duplex: F51, F53, F55, F44
- Stainless Steel: AISI 304, 316, 321, 347
- Alloy Steel: AISI Gr.1, Gr.5, Gr.9, Gr.11, Gr.22, Gr.91
- Carbon Steel: ASTM A105, A350 LF2, A516 Gr.70, A694 F60–F65

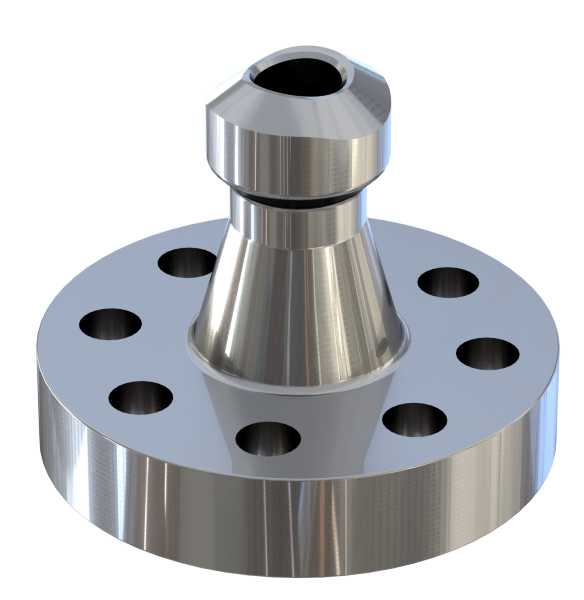

Weldo Flange
A Weldo Flange is a combination of a weld neck flange with integral O-let fitting. It is used as a branch connection and is directly welded to the run pipe, ensuring high integrity in high-pressure applications. Weldo flanges provide a smooth flow transition from the header to the branch line and are commonly used in refineries, chemical plants, and offshore facilities.
Nippo Flange
A Nippo Flange is an integration of a welding nipple and a flange, often used for branch connections where space is limited. It is ideal for high-pressure systems requiring strong welded joints. The compact and sturdy design makes Nippo flanges suitable for applications in oil & gas, petrochemical, and power generation industries.
Customization Available: Tailor-made solutions for barrel length, bore size, bevel ends, and flange faces (RF, RTJ, FF) to suit your project needs.
